FORESPAR'S ULTRA SERIES™
Represents the cutting edge in spinnaker pole end fitting technology. Designed
for high strength, very light weight and resistance to wear and corrosion
the Ultra Series™ composite end fitting is perfect for aluminum or
carbon fiber spinnaker poles and whisker poles. The Ultra Series™ is
the salior's choice for inshore and offshore racing and cruising. Available
with or without triggers. Maximum LOA Boat Outboard End - 43′. Maximum
LOA Boat Inboard End - 36′. All larger boats use GP Series. See also:
Size Recommendation Guide by length or boat model, Spinnaker poles, Spinnaker
pole kits, Line Control Whisker Poles, Lock Repair Kits, and Twist Lock Poles
For Boats To 28′.
*Trip line is Spectra™ with terminal eye strap included. Length is
sufficient for standard pole lengths based on diameter.
UXP
Forespar's “ULTRA” series of piston ends (UXP) offer strength and durability in a composite that is light weight and will not corrode. These ends feature a spring loaded piston with a “flag” at the end to allow the end to be “banged” onto ring cars or our FC-125 style flange cars. The come with an external trip line attached to the “flag”. All UXP style ends have a ¾″ wide jaw and will accept up to ½″ diameter line. All “ULTRA” style ends require 1.5″ minimum I.D. rings to allow movement without binding. Use on smaller I.D. rings will damage or break the ends and will not be covered under warranty. Trip lines are made of Spectra™ and are long enough for standard spinnaker poles lengths we build (see spinnaker poles page for pole lengths). Ends are shipped dry (no lubricant) and should not be lubricated. Flush with fresh water or soak in white vinegar if salt build up occurs. Maximum boat size: outboard end - 43′; Inboard end - 36′. Larger boats use “UGPS” or “GP” style outboard ends.

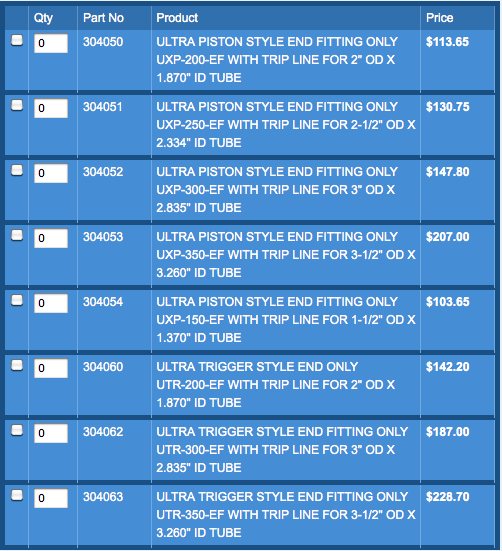

| Part Number | Style | fits pole I.D. | O.D. (nom.) | fits boats between | Weight | Length |
|---|---|---|---|---|---|---|
| 304054 | UXP-150 | 1.370″ | 1½″ | 6.97oz | 2.75″ | |
| 304050 | UXP-200 | 1.870″ | 2″ | 6.97oz | 2.75″ | |
| 304051 | UXP-250 | 2.334″ | 2½″ | 9.25oz | 3.125″ | |
| 304052 | UXP-300 | 2.835″ | 3″ | 11.92oz | 3″ | |
| 304053 | UXP-350 | 3.260″ | 3½″ | 15.72oz | 3.625″ | |
 UXP end fitting |
||||||
UTR
Forespar's “ULTRA” series of trigger ends (UTR) again, offers strength and durability in a composite that is light weight and will not corrode. These ends feature a piston that, when pulled back fully via the internal trip line, engages a trigger that keeps the piston open until the trigger is depressed. This trigger can be actuated by the end being placed onto a ring car or FC Flange car or by the line being “slapped” into the end. Note: for line to trigger the end, it must either have a load on it to hold it firm or the line must be slapped into the jaw to activate the trigger/piston. Smaller diameter lines will require more of a “slap” to activate the trigger. All UTR style ends have a ¾″ wide jaw and will accept up to ½″ diameter line. All “ULTRA” style ends require 1.5″ minimum I.D. rings to allow movement without binding. Use on smaller I.D. rings will damage or break the ends and will not be covered under warranty. Trip lines are made of Spectra™ and are long enough for standard spinnaker poles lengths we build (see spinnaker poles page for pole lengths). Ends are shipped dry (no lubricant) and should not be lubricated. Flush with fresh water or soak in white vinegar if salt build up occurs. Maximum boat size-outboard end 43′. Inboard end - 36′. Larger boats use “UGPS” or “GP” style outboard ends.
| Part Number | Style | fits pole I.D. | O.D. (nom.) | fits boats between | Weight | Length |
|---|---|---|---|---|---|---|
| 304060 | UTR-200 | 2″ | 6.97oz | 2.75″ | ||
| 304061 | UTR-250 | 2½″ | 9.25oz | 3.215″ | ||
| 304062 | UTR-300 | 3″ | 11.92oz | 3″ | ||
| 304063 | UTR-350 | 3½″ | 15.72oz | 3.625″ | ||
 UTR end fitting |
||||||
UXTR
New for 2012/13 - Forespar's “ULTRA” UXTR hybrid piston/trigger ends feature all weight savings, strength and zero corrosion as their UXP and UTR cousins. They come with a piston with a “flag” to bang onto ring cars or FC flange cars but also have the trigger feature to keep them open and ready to accept the sheet or guy. The pistons are set up to allow either external or internal trip line operation. The bodies/jaws dimensions are the same as the standard UXP and UTR ends. These ends are designed for use on spinnaker poles up to 12′ LOA. Available in 2″ and 2.5″ sizes only.
| Part Number | Style | fits pole I.D. | O.D. (nom.) | fits boats between | Weight | Length |
|---|---|---|---|---|---|---|
| 304090 NEW! | UXTR-200 | 2″ | 6.99oz | 2.75″ | ||
| 304091 NEW! | UXTR-250 | 2½″ | 9.28oz | 3.215″ | ||
 UXTR end fitting |
||||||
| Part Number | Style | fits pole I.D. | O.D. (nom.) | fits boats between | Weight | Length |
|---|---|---|---|---|---|---|
| 304021 | UGPS-300 | 3″ | 2lb 6oz | 5″ | ||
| 304022 | UGPS-350 | 3½″ | 2lb 9oz | 5-5/8″ | ||
| 304023 | UGPS-400 | 4″ | 2lb 3oz | 5-5/8″ | ||
| 304024 | UGPS-450 | 4½″ | 3lb 3oz | 5-3/16″ |
| Part Number | Style | fits pole I.D. | O.D. (nom.) | fits boats between | Weight | Length |
|---|---|---|---|---|---|---|
| 309030 | GP-300 | 3″ | 2lb 12oz | 5″ | ||
| 309033 | GP-350 | 3½″ | 3lb 6oz | 5-5/8″ | ||
| 309035 | GP-400 | 4″ | 3lb 14oz | 5-5/8″ | ||
| 309038 | GP-450 | 4½″ | 4lb 13oz | 5-3/16″ |
The chart needs to be updated like the ones above. See example:
| Part Number | Style | fits pole I.D. | O.D. (nom.) | fits boats between | Weight |
|---|---|---|---|---|---|
| 309028 | TS-300 (ALUM) | 3″ | 1lb 10oz | ||
| 304080 | UTS-300 (ULTRA) | 3″ | 1lb 4oz | ||
| 309031 | TS-350 (ALUM) | 3½″ | 1lb 13oz | ||
| 304081 | UTS-350 (ULTRA) | 3½″ | 1lb 7oz | ||
| 405006 | TS-400 (ALUM) | 4″ | 2lb 2oz | ||
| 309036 | TS-450 (ALUM) | 4½″ | 2lb 13oz | ||
| 304082 | UTS-400 (ULTRA) | 4″ | 1lb 7oz |
